VTK-S

Preview: VTK-S Preview: VTK-S
VTK-S
VTK-S

Price and delivery time on request

Prices incl. VAT plus shipping costs

Available

Width W

Length L

Height H

  • Article number 21214800300
  • Product order description: VTK - 841
  • Product name: VTK-S 100-170-45
Description Properties PDF & links Technical information Maintenance and lubrication Finishing Custom-made products
Description
Stroke plate according to VDI 3357, steel hardened more
Close menu

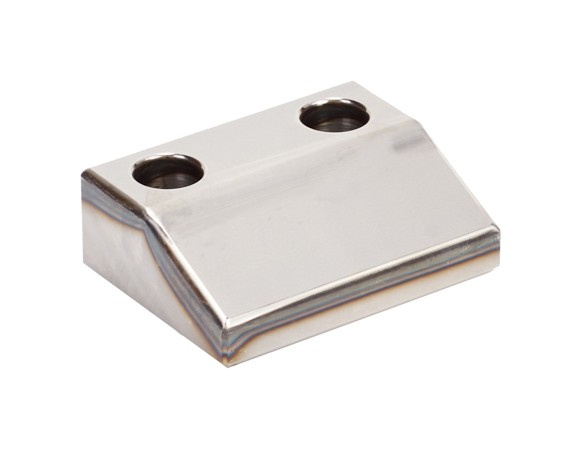

Product information "VTK-S"

Stroke plate according to VDI 3357, steel hardened

Base Material: Steel, hardened
Self-lubricating: No
Article name Width W Length L Height H Angle a l1 l2 l3 M (ISO 4762) CAD-Download Inquiry
VTK-S 100-170-45 100 170 45 20° 90 45 60 4xM12
VTK-S 125-170-45 125 170 45 20° 90 45 85 4xM12
VTK-S 150-170-45 150 170 45 20° 90 45 110 4xM12
VTK-S 100-150-45 100 150 45 30° 90 45 60 4xM12
VTK-S 100-170-60 100 170 60 30° 90 45 60 4xM12
VTK-S 125-150-45 125 150 45 30° 90 45 85 4xM12
VTK-S 125-170-60 125 170 60 30° 90 45 85 4xM12
VTK-S 150-150-45 150 150 45 30° 90 45 110 4xM12
VTK-S 150-170-60 150 170 60 30° 90 45 110 4xM12
Article name Width W Length L Height H Angle a l1 l2 l3 M (ISO 4762) CAD-Download Inquiry
Related links to "VTK-S"
Properties
Eigenschaften aufklappen
Menü schließen
Properties: "VTK-S"
Base Material: Steel, hardened
Self-lubricating: No
